Jobsite Roll - Forming

With a jobsite roll-former you can order the material weeks in advance , and when the job is ready to measure, you can be on the job the next day. There is no guessing on the panel lengths; you can field measure and cut them to the exact length that is needed. There is no wasted material and no need to order extra panels in case you need them. If you order extra material, you can cut up the remainder of the coil and use it for flashings.

For long length panels there is no need for the extra cost of a stretch hauler. In a lot of cases the panels can be run off directly to the roof, eliminating the need to hoist the panels to the roof.

On certain profiles of panels, the machine can form the panel and the radius at the same time. This is a huge cost savings. It virtually cuts the fabrication time in half.

The benefits of job-site roll-formed panels are:

	No wasted material		No cutting of panels
	No waiting for material		No lapping of panels
	For radius roof panels in a lot of cases, no extra curving machine needed		Place the panels from the machine directly on the roof

Click on a panel to view a larger image.

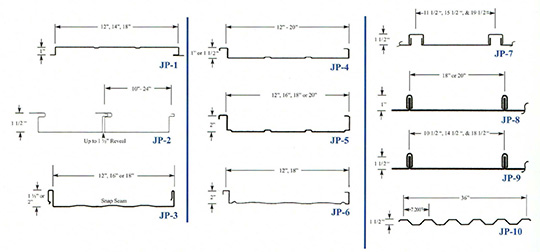

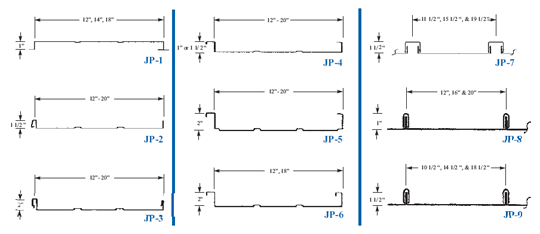

Panel Notes:

1. Please inquire for Material Guage and Color selection.
2. Panel JP-1 is a Flush Soffit PaneL Minor ribs are available.
3. Panel JP-2 is a Wall or Soffit Panel in 10" thru 24" wide and offer up to a 1 1/2 reveal. This is a jobsite rolled panel
4. Panel JP-3 is a Snap Lock Panel with minor ribs or striations available.
5. Panels JP-4, JP-5, & JP-6 are Roof Panels that require the use of a rented field seamer. Minor Ribs or Striations are available.
6. Panels JP-7, JP-8 & JP-9 come in various widths.
7. Panels JP-1 0 is a Curved Panel only, not jobsite rolled.
8. Panels JP-3, JP-4, JP-5, JP-6, JP-8 & JP-9 can be field curved.
